ANY DISTANCE, ANYWHERE

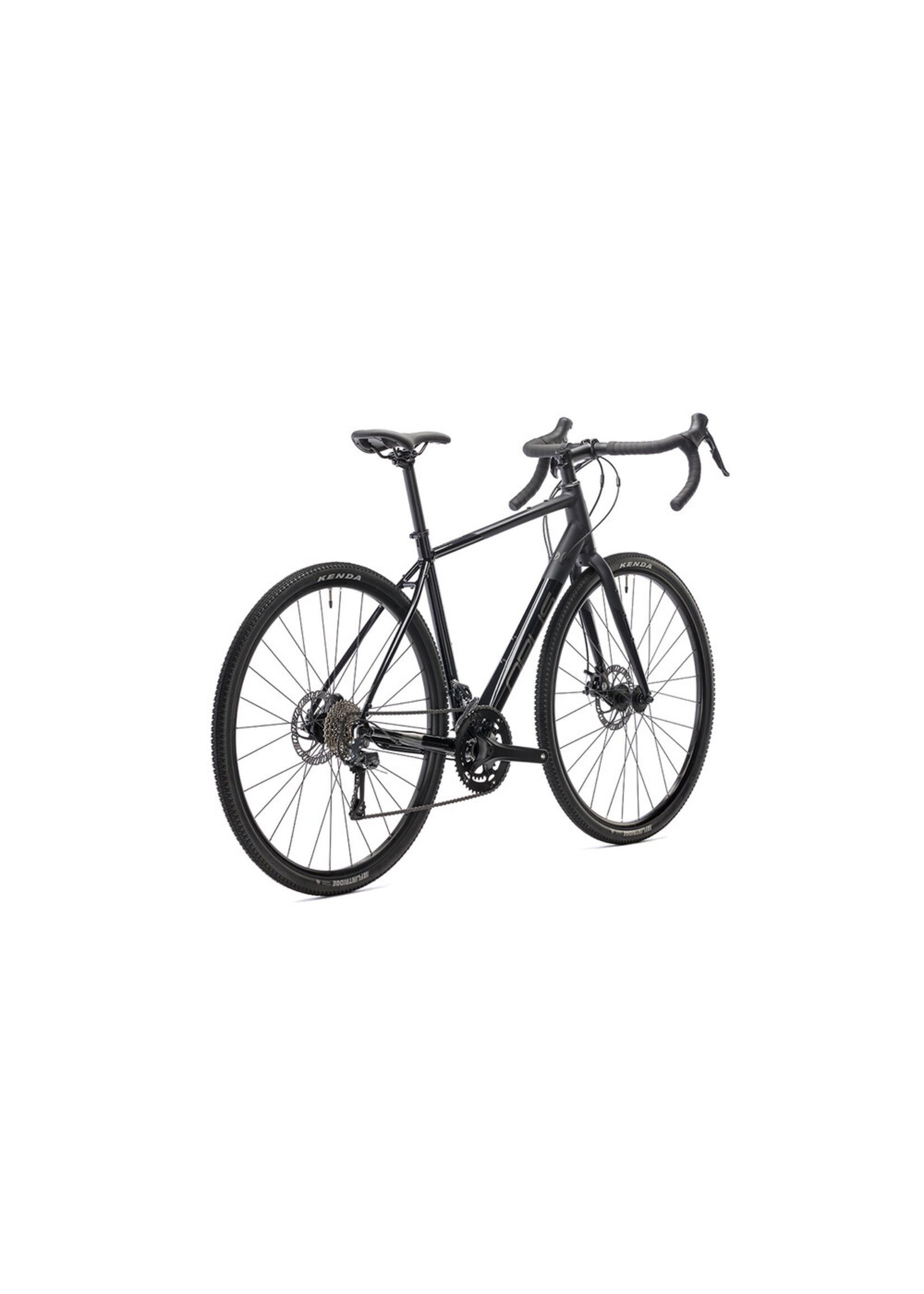

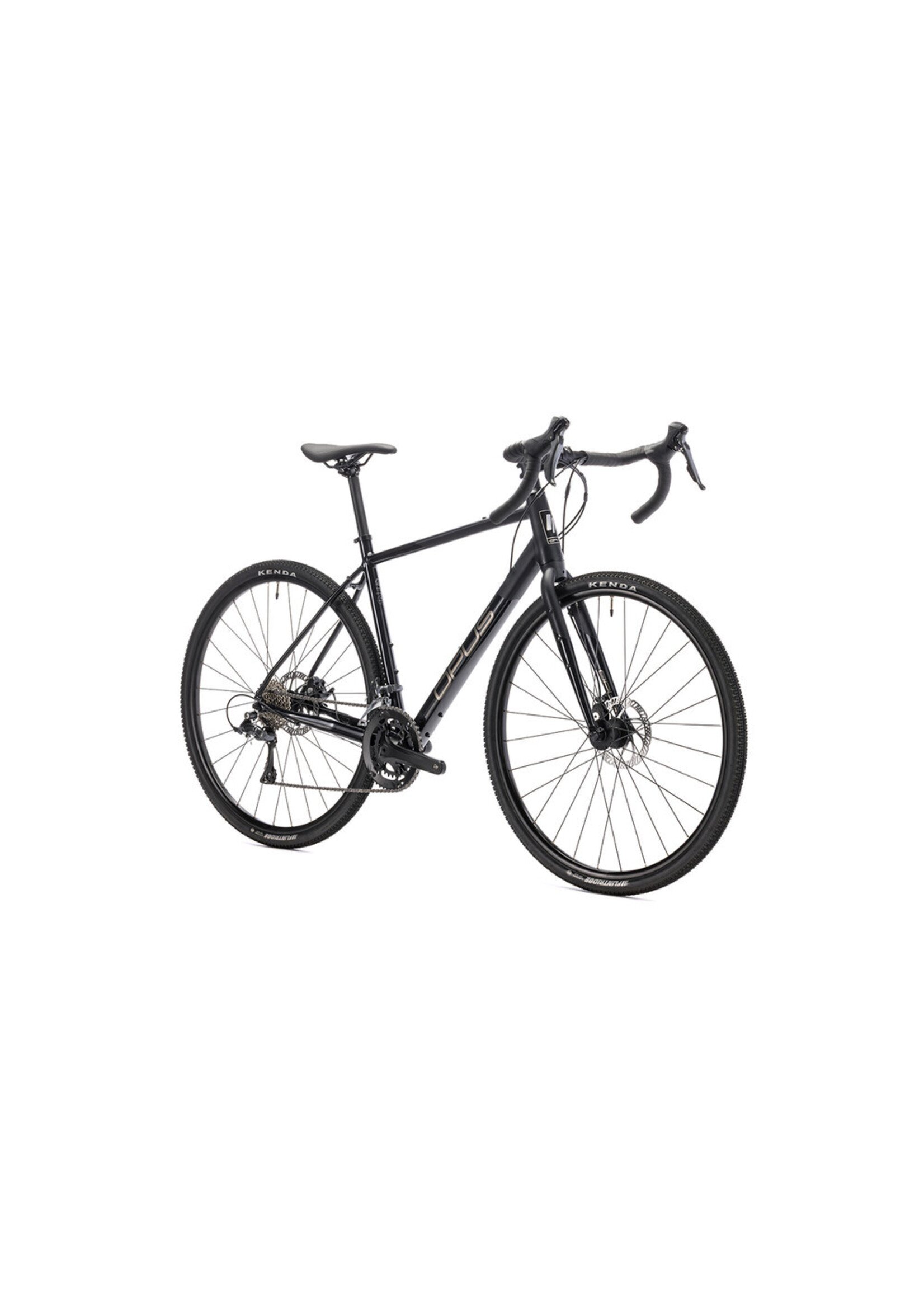

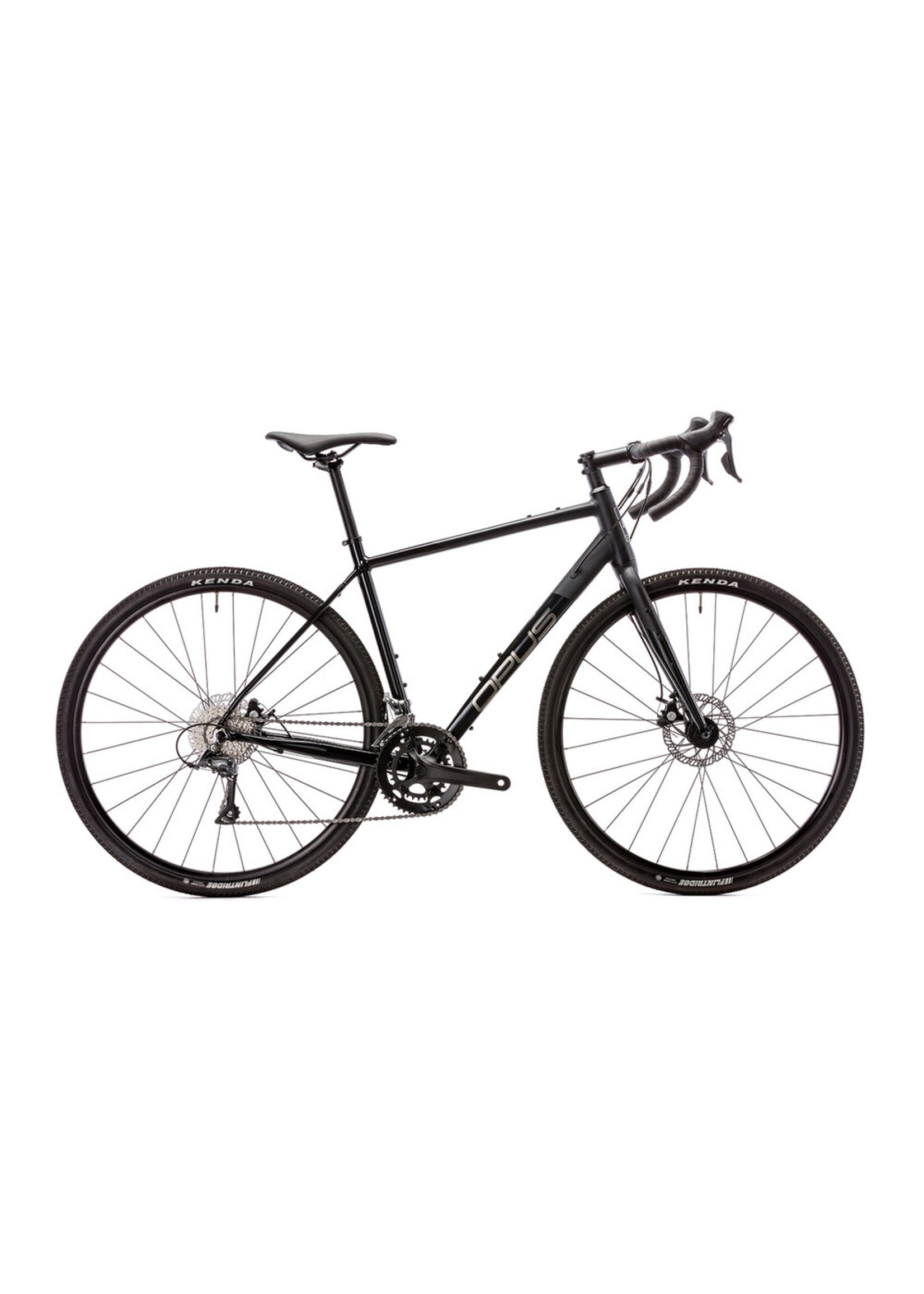

The Horizon AL Claris QR delivers a level of performance and versatility unmatched at this price. From fast road or city commuting to multi-day bike packing expeditions, you decide which road to travel.
Available in store
CloseFeatures
| Frame | Meta 30 aluminum |
| Fork | Steel tapered 1-1/2 to 1-1/8 in |
| Sizes | XXS-XS-S-M-L-XL |
| Shifters | Shimano Claris R2000 2 x 8 |
| Front Derailleur | Shimano Claris R2000 |
| Rear Derailleur | Shimano Claris R2000 |
| Brakes | Tektro MD-310 Flat Mount mechanical disc |
| Brake Levers | Shimano |
| Crank | Prowheel RPL-421 |
| Chainrings | 48-32 |
| Bottom Bracket | sealed BSC threaded |
| Cassette Cogs | Shimano 11-32 |
| Chain | KMC Z8.3 |
| Headset | FSA Orbit integrated sealed |
| Handlebar | Alloy butted 16° flare |
| Stem | Promax |
| Grips/Tape | Velo VexGel diamond grip |
| Saddle | Opus Endurance |
| Seatpost | Promax alloy 27.2 x 300 |
| Wheels/Rims | Weinmann U28 |
| Hubs | Alex Bear Pawls QR fr/rr |
| Tires | Kenda Flintridge Sport 700 x 35 |
| Pedals | N/A |
| Other | Top tube bag mount |
| Other | Fr/rr rack and fender mounts |
| SIZE | XXS | XS | S | M | L | XL |
| SIZE (CM) | ||||||
| RIDER (± 5CM) | 155 | 160 | 168 | 175 | 183 | 190 |
| RIDER (± 2") | 5'1" | 5’3” | 5'6" | 5’9” | 6’0” | 6'3" |
| SEAT TUBE | 420 | 450 | 480 | 510 | 545 | 580 |
| TOP TUBE | 515 | 530 | 544 | 559 | 578 | 599 |
| HEAD TUBE | 98 | 118 | 138 | 158 | 178 | 198 |
| HEAD ANGLE | 69.75 | 70.5 | 71 | 71.5 | 72 | 72.5 |
| SEAT ANGLE | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| CHAIN STAY | 425 | 425 | 427 | 427 | 429 | 429 |
| BB DROP | 80 | 78 | 76 | 74 | 73 | 72 |
| STACK | 534 | 553 | 572 | 590 | 610 | 630 |
| REACH | 372 | 376 | 380 | 384 | 392 | 400 |
| STAND OVER | 718 | 743 | 766 | 791 | 818 | 847 |
| BAR | 380 | 400 | 420 | 420 | 440 | 440 |
| STEM | 70 | 80 | 90 | 100 | 110 | 110 |
| CRANK | 165 | 170 | 172.5 | 172.5 | 172.5 | 175 |
